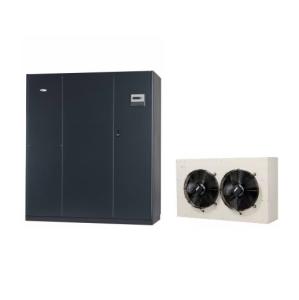

Precision Cooling Unit Used In Computer Room one year warranty
Technology
(1) The accuracy of temperature controlis at +0.2 and that of humidity control +2%.
(2) For higher External Static Pressure (ESP), please contact Hairf.
(3) Noise is measured in free field 2m apart from the unit.
| Model : HADR/HAUR | 0201 | 0251 | 0261 | 0271 | 0301 | 0351 | 0401 | 0451 |
| Cooling capaciy(1) | kw | 21.2 | 23.2 | 26.8 | 27.3 | 31.5 | 35.6 | 41.2 | 44 |
| Air flow | m³/h | 6530 | 7050 | 7280 | 8500 | 9000 | 10000 | 11000 | 13000 |
| EER | | 3.72 | 3.6 | 3.6 | 3.75 | 3.71 | 3.71 | 3.71 | 3.68 |
| SHR | | 0.98 | 0.98 | 0.92 | 0.98 | 0.99 | 0.98 | 0.97 | 0.95 |
| Compressor | | | | | | | | | |
| Type | | Scroll |
| Capacily | kw | 5.2 | 5.5 | 5.9 | 6.2 | 7.4 | 8.3 | 9.3 | 10.1 |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| I F hned coil evaporator | | | | | | | | | |
| Frontal surface | ㎡ | 0.8 | 0.8 | 0.8 | 1.4 | 1.4 | 1.4 | 1.7 | 1.7 |
| Geometry | mm | 25X21.65 |
| Type of fins | | Hydrophilic |
| Fin pich | mm | 1.8 |
| Fan section | | | | | | | | | |
| Type | | Centrigugal fan |
| Quantity | nr | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Absorbed curent | A | 2.5 | 2.5 | 2.8 | 3.2 | 3.5 | 4.1 | 4.4 | 4.9 |
| Absorbed power | W | 1050 | 1100 | 1200 | 1300 | 1320 | 2000 | 2150 | 2400 |
| AESP Max Speed(2) | Pe | 360 | 360 | 360 | 380 | 380 | 355 | 355 | 355 |
| Air flter | | | | | | | | | |
| Eficiency | | EU4 |
| Overall surface | ㎡ | 5.8 | 5.8 | 5.8 | 6.5 | 6.5 | 6.5 | 7.8 | 7.8 |
| Fire resistance dass | | | | | | | | | |
| I Electrical heaters | | | | | | | | | |
| Total heating capacity | kw | 5 | 5 | 5 | 5 | 5 | 8 | 8 | 8 |
| Quanlily | nr | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Material | | PTC |
| Humidifier | | | | | | | | | |
| Capacily | Kg/h | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 | 8-13 |
| Absorbed power | kw | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension&Weight | | | | | | | | | |
| Height | mm | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 | 1998 |
| Length | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1750 | 1750 |
| Depth | mm | 795 | 795 | 795 | 795 | 795 | 795 | 795 | 795 |
| Weight | kg | 375 | 385 | 393 | 450 | 490 | 590 | 595 | 610 |
| Sound level | | | | | | | | | |
| Sound pressure level(3) | db(A) | 52 | 53 | 53 | 55 | 56.5 | 58 | 60 | 60 |
High quality control component
It strictly complies with CE and IEC standards and is empowered with advanced electric control technology and able to work under a power source of 380V±20%. In addition, it is installed with a power supply protection module, enabling it to make a selection of protective value in a range of 380V±50%. When voltage goes beyond the selected range, it will automatically protect the unit. While the voltage becomes normal, it will automatically restart the unit.
Evaporator
An efficient evaporator made from quality material with advanced professional technology and featuring large heat exchange area and the realization of higher sensible heat factor of precision air conditioning unit.
Expansion Valve
Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant. In order to achieve the reduction of energy consumption for refrigeration equipment, we employ advanced electronic expansion valves in high-performance precision air conditioning units to realize less energy
consumption.
FAQ
Q:What are your factory main products?
A:Precision Air Conditioners,UPS & Data center.
Q:How to choose Precision air conditioner and UPS brand?
A:Hairf brand have reliable quality and reasonable price.
Q:What is your company strength?
A:A strong team with more than 20 years of experiences of manufacturing air conditioners and
UPS,we have our own Lab,R&D Center,Assembly Line, QC Staff & Equipments.
Q:What about the Warranty Service?
A:AII products have 1 year guarantee under no artificlal damage.
